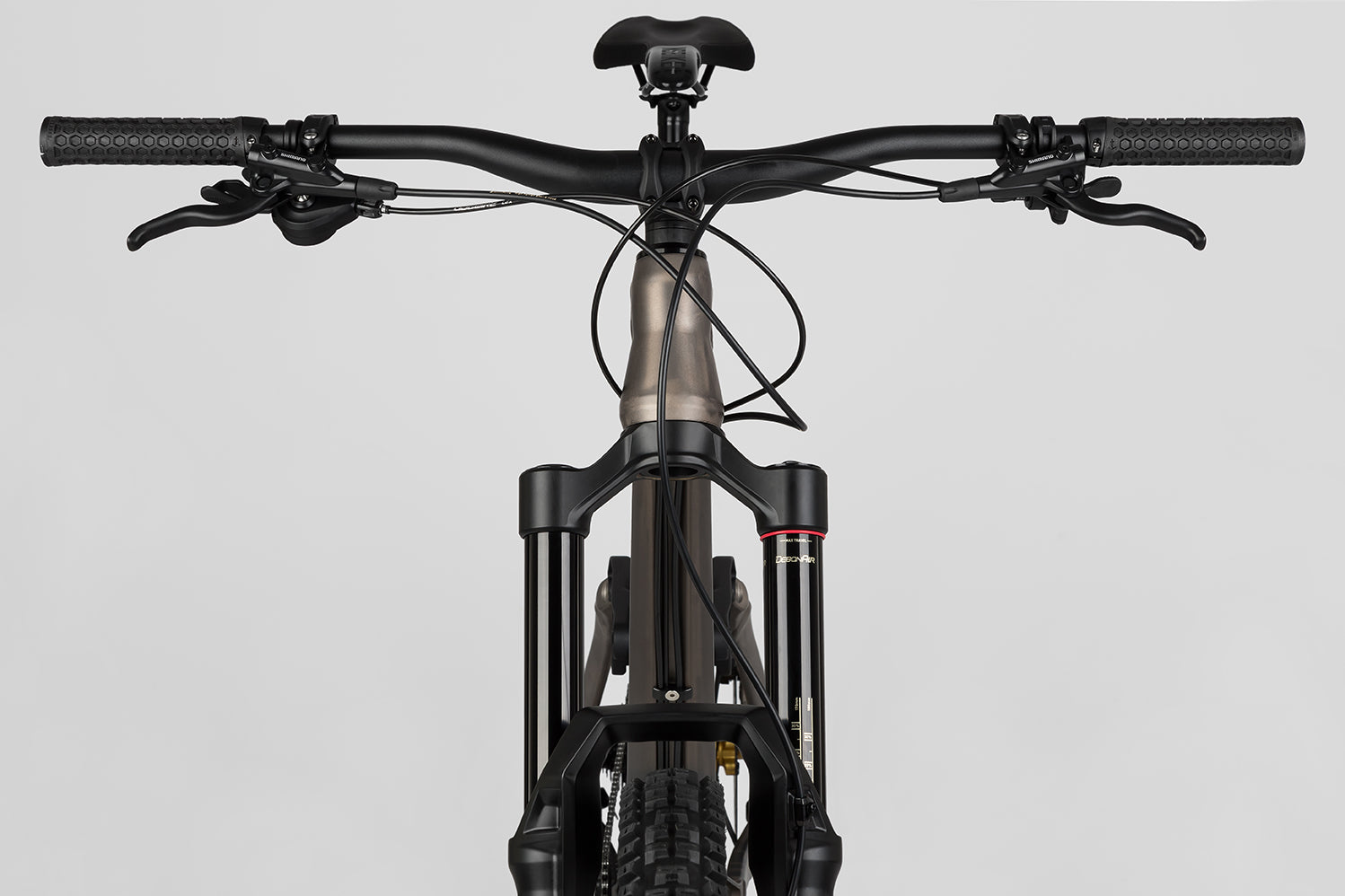

Bicycle NS 29 Define AL 170 2 01002948

NS 29 Define AL 170 2 Bike

THIS IS THE LARGEST BIKE IN THE DEFINE RANGE. IT'S A DOWNHILL BIKE THAT CAN ALSO CLIMB. THE MIXED WHEEL SIZE IS A GREAT SOLUTION AND MAKES A LOT OF SENSE FOR MANY RIDERS. A LARGE, FAST-ROLLING 29” TIRE UP FRONT OVER ROUGH TERRAIN AND A SMALLER 27.5” WHEEL AT THE BACK ALLOW FOR MORE SUSPENSION TRAVEL. A LUXURIOUS ALLOY FRAME WITH HYDROFORMED TUBES, HIDDEN EXTERNAL CABLE ROUTING, LARGE BEARINGS, AND RADICAL GEOMETRY!

FRAME MADE OF DURABLE ALLOY WITH CUSTOM HYDROFORMED TUBES AND DOUBLE WELDS
PROGRESSIVE GEOMETRY WITH 44MM RAKE FORK
29” FRONT / 27.5” REAR WHEELS
180MM FRONT / 170MM REAR TRAVEL
ROCK SHOX ZEB FORK WITH 38MM STANCHIONS
MARZOCCHI BOMBER CR COIL SHOCK
KS RAGE-I DROPPER POST
SHIMANO DEORE 1X12 DERAILLEUR
4-PISTON SHIMANO DEORE BRAKES
SHIMANO DEORE CRANKSET
LARGE BETTY SCHWALBE TIRES

-frame: NS Define AL with 170 mm travel, AL6061-T6 + AL6066-T6, custom hydroformed tubes, semi-internal cable routing
-sizes: M, L
-rear shock: X-Fusion Vector R Trunnion 225x70mm, S:350lbs/in, M:400lbs/in, L:450lbs/in
-forks: RockShox ZEB 180mm travel, 110x15mm Boost, 1.5T, 44mm offset head: GW integrated tapered IS42/IS52, sealed bearings
-stem: NS Tone 35, 45mm
-handlebar: NS Bar 35, 800 mm, 20 mm rise
-grips: NS Hold Fast
-seatpost: X-Fusion Manic internal M:150mm, L:170mm
-saddle: Octane One Rocket2, CrMo hollow rails
-front brake: Shimano MT420, 200mm
-rear brake: Shimano MT420, 200mm
-levers: Shimano Deore
-rims: Octane One Solar 29” front, Octane One Solar 27.5” rear, 32h, tubeless
-spokes: 14 mm nipple spokes
-front hub: NS 15 Boost 110x15mm disc (sealed bearings)
-rear hub: NS 148x12mm Boost (sealed bearings)
-front/rear tires: Schwalbe Big Betty BikePark 29x2.4" / Schwalbe Big Betty BikePark 27.5x2.4"
-crankset: Shimano Deore FCMT5101 170mm 34t
-bottom bracket: Shimano BSA 73 mm
-pedals: /
-chain: Shimano, 12 spd
-chain guide: /
-derailleurs: Shimano Deore M6100, 12spd
-shifters: Shimano Deore M6100, 12spd
-cassette: Sunrace CSMZ800, 12spd 11-51T
-weight (kg): 15.8 (* size M, tubeless setup)
